THE FEED MILL EXTRUDER

 CHAPTER ELEVEN: THE FEED MILL EXTRUDER

The Feed mill Extruder is an agro-industrial machine for processing feed for livestock such as fishes and poultry. It uses multiple combination of electric motors that drives a screw conveyor, to press a feed mixture through a series of tiny perforations at the end of a heated and insulated drum. From the other end of the drum, a delicious, attractive strip of pasta (like your spaghetti), is forced out. After drying the pasta, it becomes hardened and crispy; it is then bagged and ready to be served to your livestock.

Facing/adjacent to the extrusion orifice of the drum is a smaller motor powering a rotary cutter that slices the extruded continuous strip of pasta as they form out of the chamber.

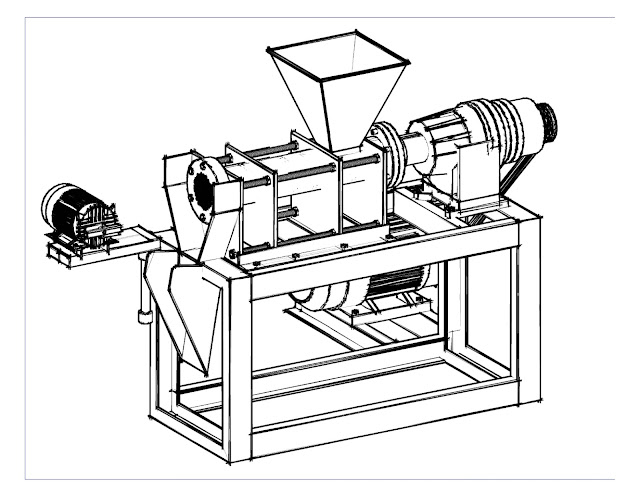

Enjoy the some of the views of this awesome industrial machine that I have drawn.

















😀😀.

Location: Owerri, Nigeria
